Configuring New RTK Settings on your Emlid GPS Receiver

In this article, you will learn step by step how to configure the new RTK settings on your Emlid GPS receiver. Please follow the instructions below carefully to set up a correct NTRIP connection.

Preparation

What do you need?

• A charged Emlid GPS receiver (RS2)
• A smartphone (iOS or Android)
• The Emlid Flow app
• Your personal NTRIP username and password (received from Agromanager)

Step 1 – Install the Emlid Flow app

1. Download the Emlid Flow app on your smartphone.


Step 2 – Turn on the GPS receiver

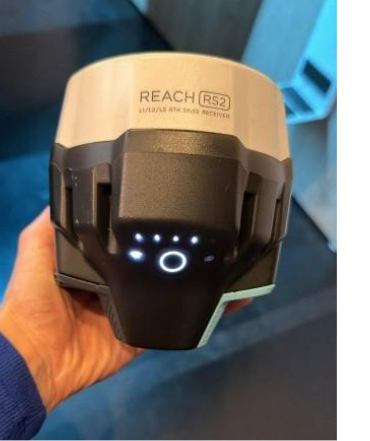

2. Turn on the Emlid GPS receiver by pressing the round button for about 3 seconds.



Step 3 – Connect to the GPS receiver’s Wi-Fi network

3. On your smartphone, go to Settings → Wi-Fi.
4. Connect to the GPS receiver’s Wi-Fi network:
   Name: Agromanager: AC: …
   Password: emlidreach

Step 4 – Connect via Emlid Flow

5. Open the Emlid Flow app.

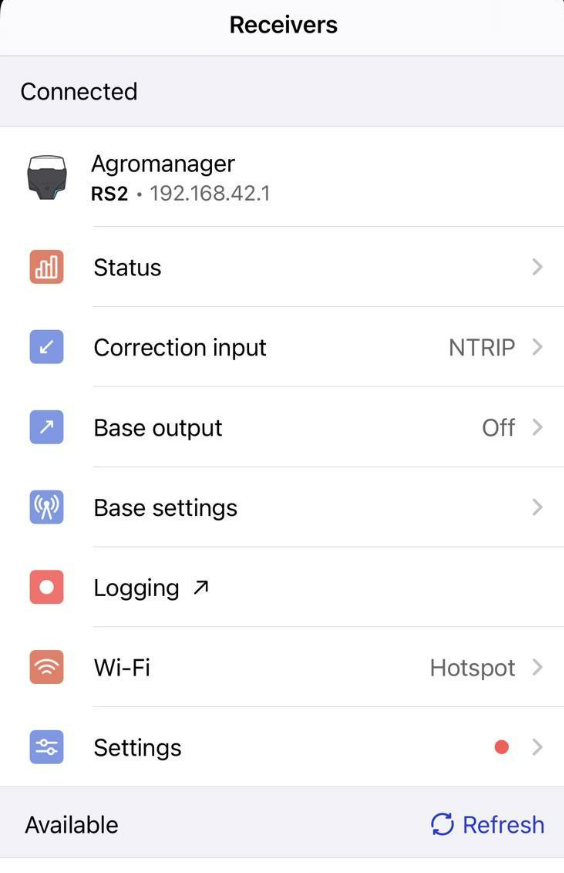

6. At the top, you will see the GPS receiver appear when the connection is successful.
7. Click on the displayed receiver.


Step 5 – Open the Reach Panel

6. Click on Reach Panel.

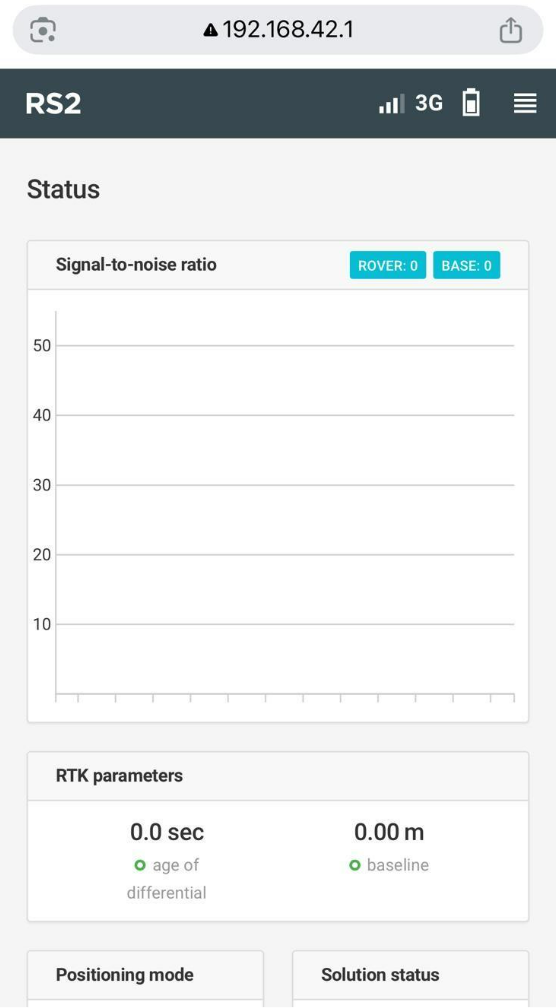

Your browser will open automatically and display the GPS configuration panel (via 192.168.42.1).

Step 6 – Configure Correction Input

8. Click the menu icon in the top right corner (☰ – three lines).
9. Then click Correction Input.
10. Select NTRIP as the correction method.

Step 7 – Enter the NTRIP details

Enter the settings below exactly as follows:

• Address: 185.203.84.236
• Port: 2101
• Username: your personal username
• Password: your personal password
• Mount Point: COMMON


Step 8 – Save the settings

13. Click Apply at the bottom to save the settings.

✅ Done! Your RTK settings are now configured correctly.

Having trouble connecting?

• Check whether you are correctly connected to the GPS receiver’s Wi-Fi network.
• Check whether your username and password have been entered correctly.
• Restart the GPS receiver if necessary and try again.
