How do I draw in my Cultivation rows?

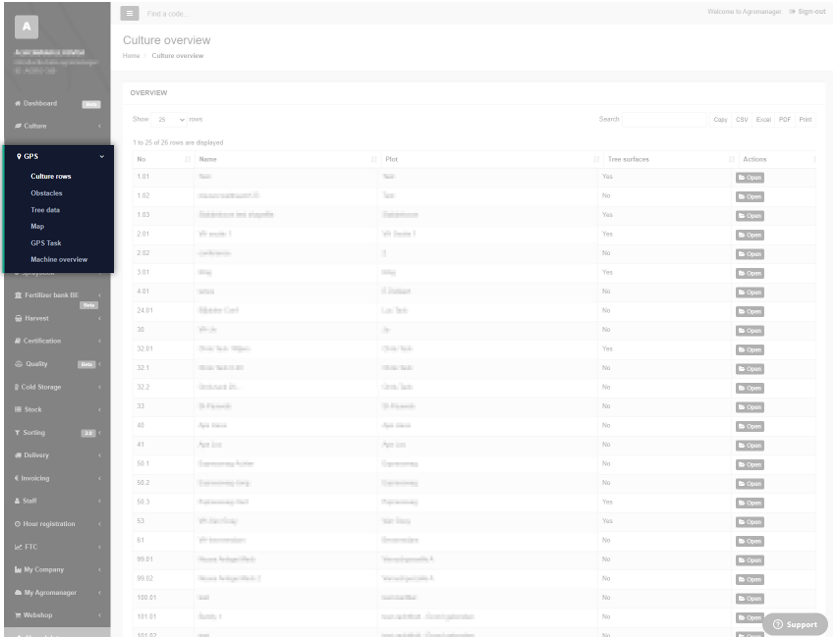

Step 1 - Open GPS module

You will find the different modules on the left side of your screen. Here you will find the GPS module.

In the menu under GPS, you will find the item Cultivation rows. Below you will find the screen with an overview of all your crops.



Step 2 - Open Cultivation

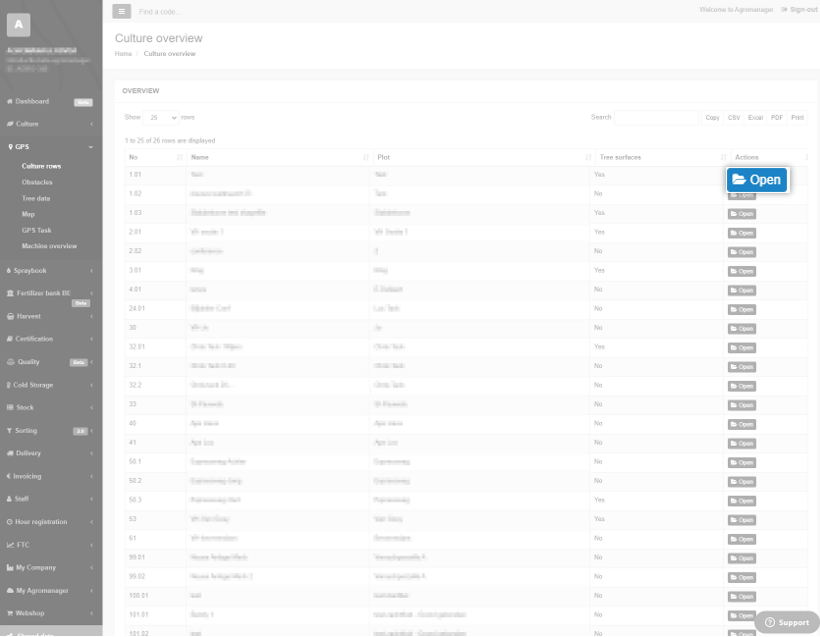

On the right, near the general data of the cultivation, you will find Open. If you click on this, you will see a screen with your cultivation drawn on the map and some cultivation criteria.



Step 3 - Add new crop rows

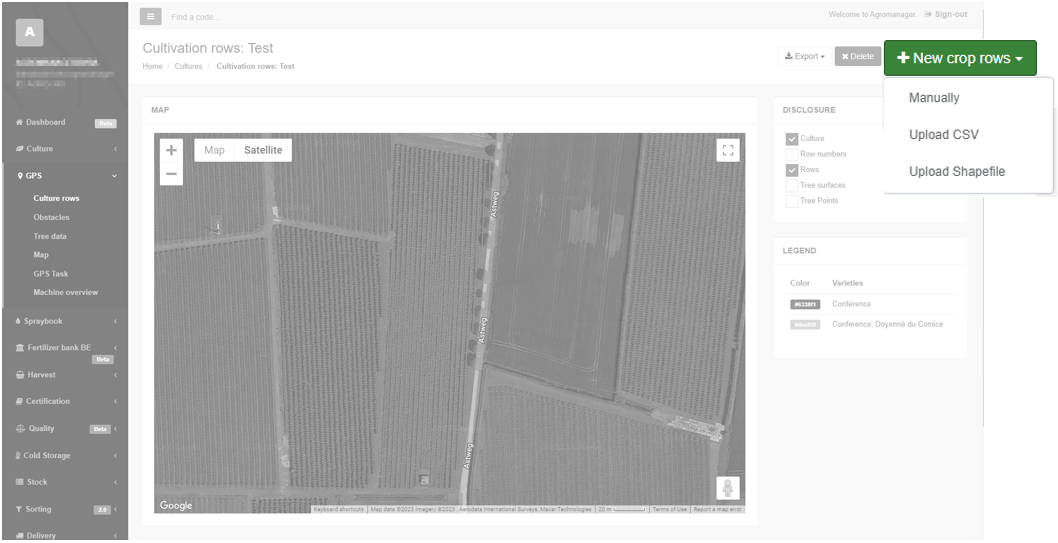

At the top right, click  New crop rows , which opens a selection list with the different ways in which you can add the new crop rows to your crop.

  • Manually: You will draw the rows by hand in the Map on Agromanager.
    Note : This way is NOT accurate.
  • Upload CSV:  This button allows you to load a CSV file that you previously created with your GPS/EMLID.
  • Upload Shapefile: Via this button you can have a Shapefile, which for example the contractor has created when drawing out your crop, imported.

Option 1: Manually

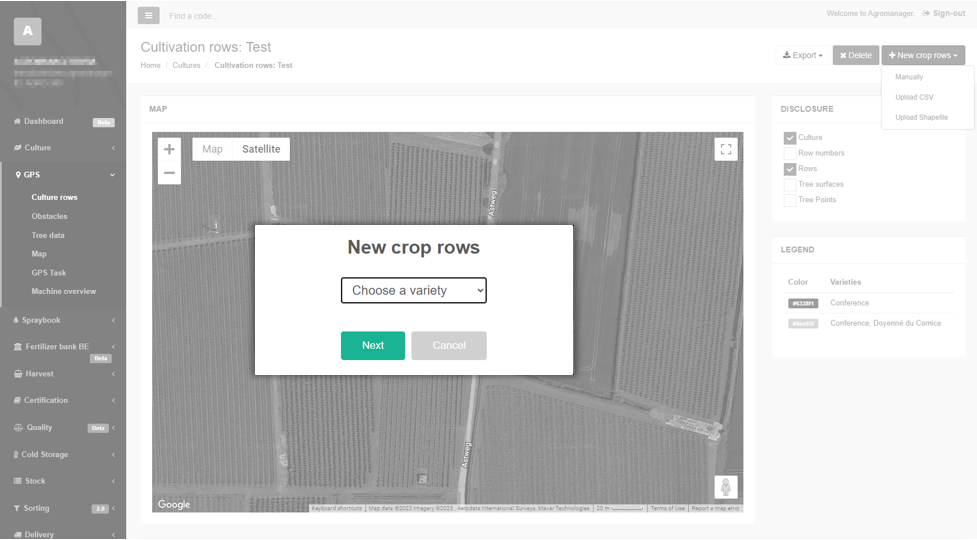

If you have chosen Manual, a POP-UP will appear on your screen. Indicate the variety for which you want to enter cultivation rows and click Next.

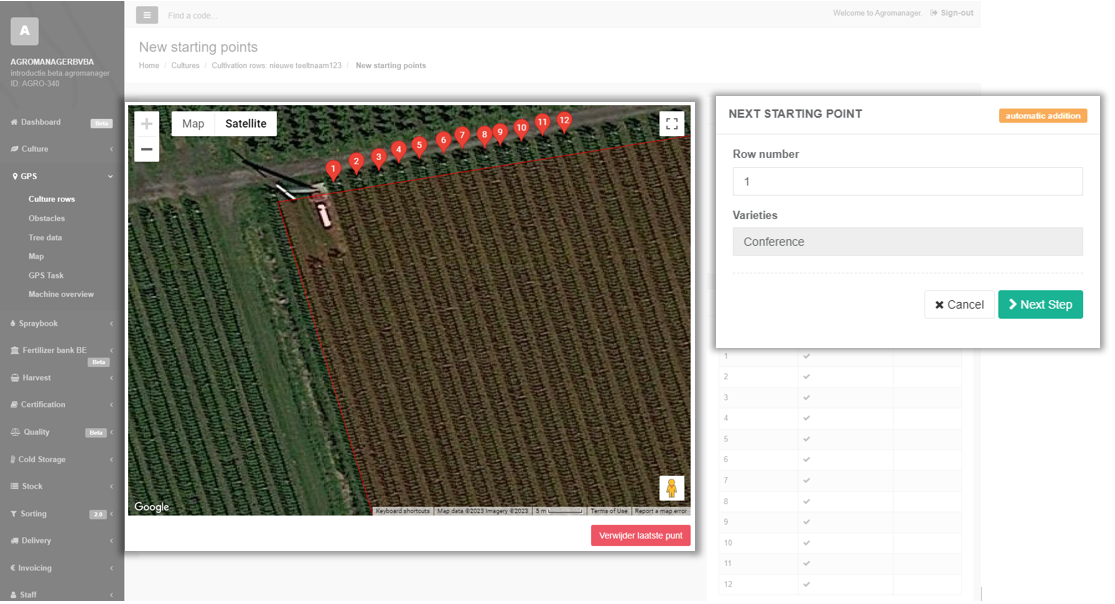

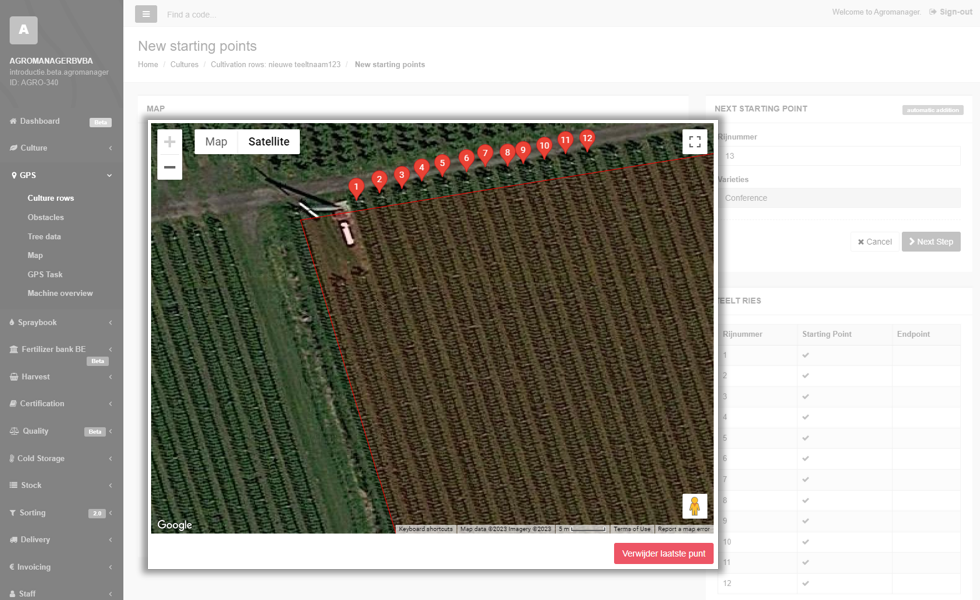

Indicate starting points

On the  Map you can, by clicking on your left mouse button, indicate the starting points of the rows. These points will be listed on the right side of your screen. When you have indicated all the starting points of the crop rows, click Next Step



Designate endpoints

On the  Map you can, by clicking on your left mouse button, indicate the end points of the rows. This will create lines between the points, these are the cultivation rows.

Attention! The system itself chooses for which cultivation row you indicate an end point. This sequence is automatic countdown. On the right side of your screen you can see for which cultivation row you will enter an end point.

Save crop rows

When you have indicated all the endpoints of the crop rows, click Save . The following data will be generated by the criteria already entered: Rows, Tree planes and Tree points .

Option 2: Upload CSV

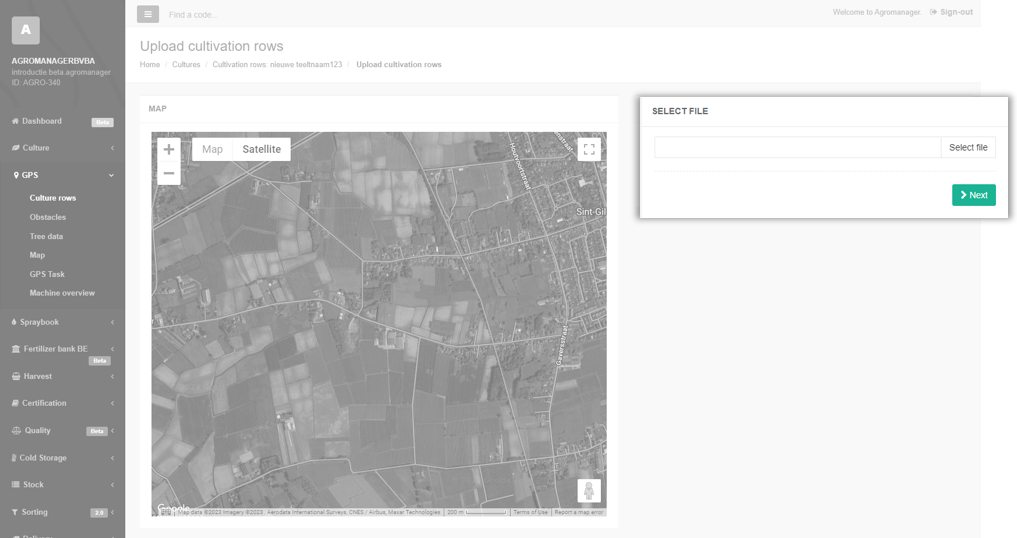

If you have chosen the Upload CSV option, you can upload the file on the right side of your screen by clicking on Select file. Once you've identified the correct file, click Next. The measured points will automatically  appear on the Map.

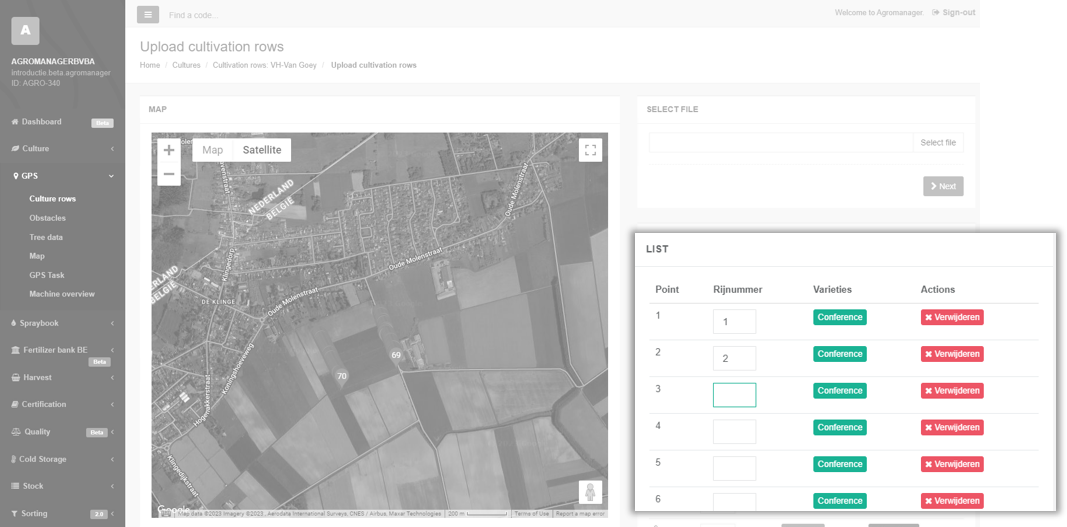

Connect dots

After Agromanager has processed the CSV file, all measured points will appear both on the map and in the list on the right. In this List you can enter the correct row number in addition to the start and end points.

Attention: The row number not the opposite measuring point!

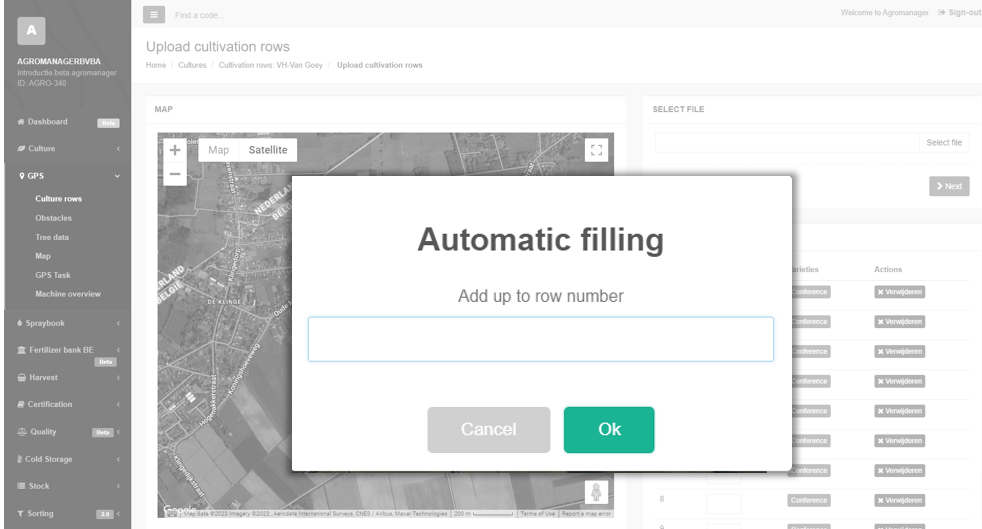

SUGGESTION!

If you enumerate when filling in the rows next to the start or end points, a POP-UP will appear. By entering this, the start or end points of the row up to the entered row number will be filled in automatically.

Attention: Don't forget to fill in the row numbers for the endpoints!

Save crop rows

When you have marked all points of the cultivation rows and connected them to the correct row, click Save. The following data will be generated by the data already entered:  Rows, Tree planes and Tree points.

Option 3: Upload Shapefile

If you have chosen the Upload Shapefile option, you can upload the file on the right side of your screen by clicking on Select file. Once you've identified the correct file, click Next. The measured points/rows will automatically appear on the Map.

Save crop rows

When the Shapefile has been successfully processed, click Save. The following data will be generated by the criteria already entered: Rows, Tree planes and Tree points.

You don't have to do anything after uploading this file type.
